170 ° Batten

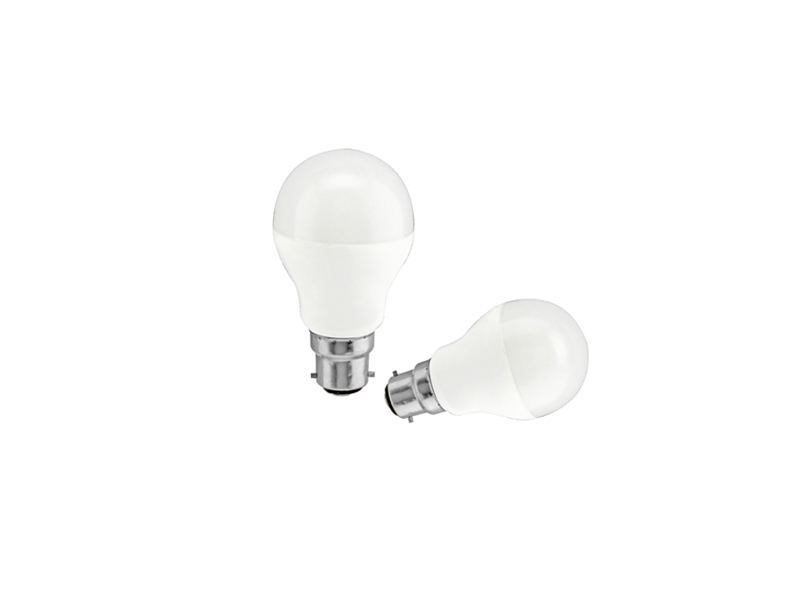

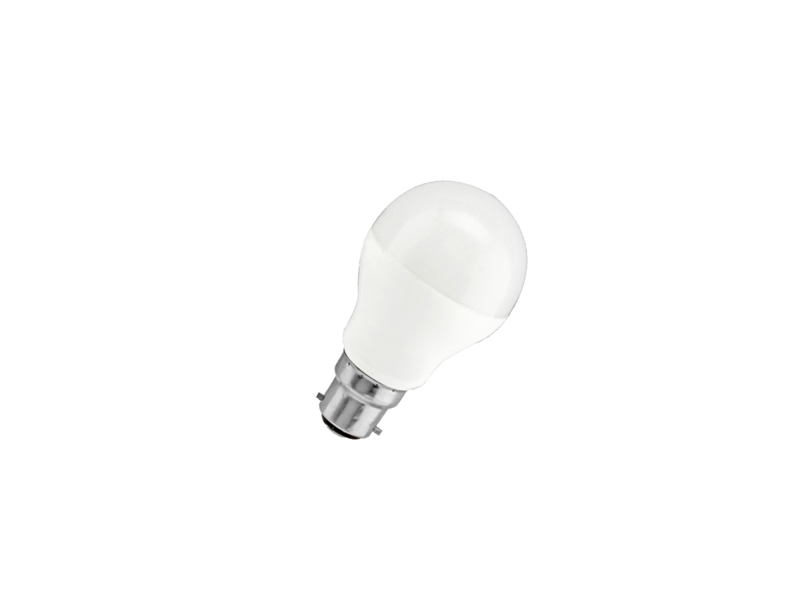

170° LED Bulb aesthetically designed Spherical LED Bulb for B22 lamp base.
- Input Voltage : AC 140-270V, 50Hz
- LED Life : 25,000 hours
- Optics : Polycarbonate diffuser for better distribution
- Idriver Type : Constant Current. Non-Integral
- P.F : ≥ 0.9
- Surge : 2.5 KV
- CRI : Ra>80
| Input Power (W) | Input Voltage | Colour Temp(CRI) | Beam Angle | Lumen (lm) | THD | Cut-out Dimension (mm) |
|---|
| 3W | 220- 270V, AC - 50Hz | 3000K/5700K/6500K | 180° | 300 | < 15 | 55x105 |
| 6W | 140- 270V, AC - 50Hz | 3000K/5700K/6500K | 180° | 500 | < 15 | 55x105 |
| 7W | 140- 270V, AC - 50Hz | 3000K/5700K/6500K | 180° | 700 | < 15 | 55x105 |
| 9W | 140- 270V, AC - 50Hz | 3000K/5700K/6500K | 180° | 900 | < 15 | 60x110 |
| 12W | 140- 270V, AC - 50Hz | 4000K/5700K/6500K | 180° | 1200 | < 15 | 65x120 |
Share
RESIDENTIAL
SHOPPING MALLS
WAREHOUSE & FACTORIES
SCHOOLS & COLLEGES
HOTELS
HOSPITALS
