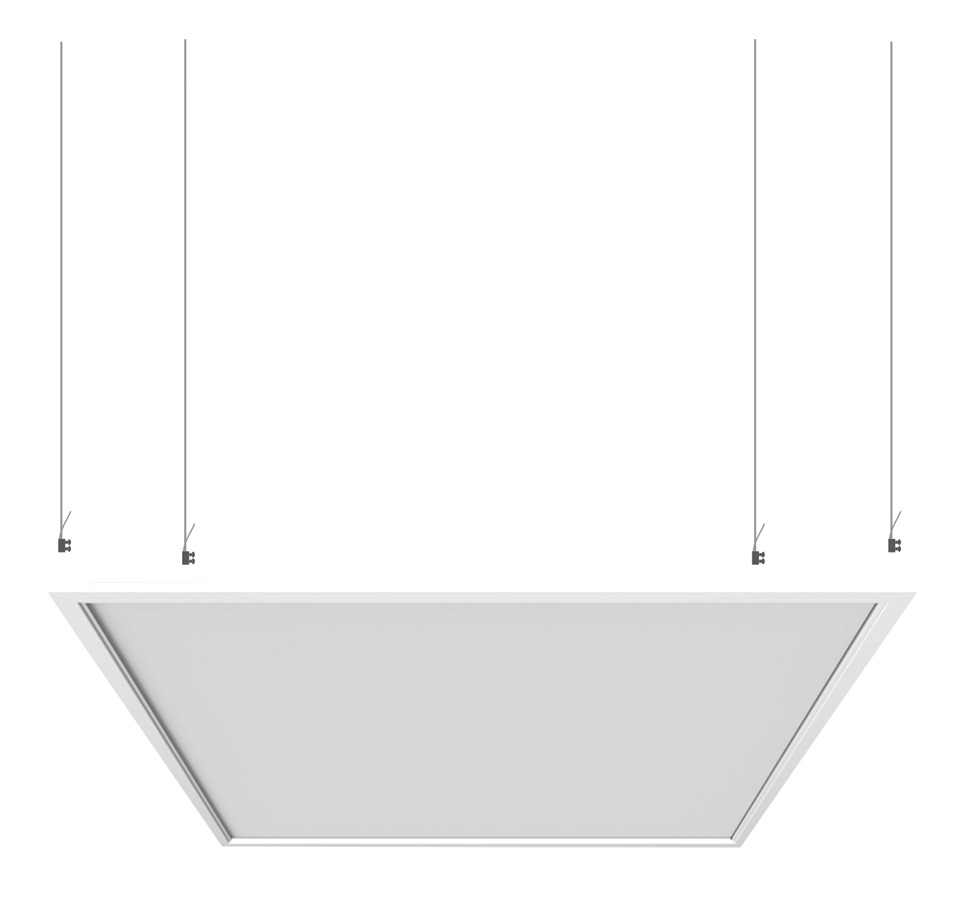

2x2 Surface Panel

2x2 Surface Panel

Slim type LED Panel with die-cast aluminum housing and smooth powder coated finish with anti-glare UV stabilized diffuser and separate energy efficient electronic driver & inbuilt driver.


  • Input Voltage : AC 140-270V, 50Hz
  • LED Life : 25,000 hours
  • Optics : Polycarbonate diffuser for better distribution
  • Idriver Type : Constant Current. Non-Integral
  • P.F : ≥ 0.9
  • Surge : 4 KV
  • CRI : Ra>80


Input Power (W) Input Voltage Colour Temp(CRI) Beam Angle Lumen (lm) THD Cut-out Dimension (mm)
10W 140- 240V, AC - 50Hz 6500K 120° 1000 < 20 143x100x25
30W 140- 240V, AC - 50Hz 6500K 120° 3000 < 33 200x137x27
50W 140- 240V, AC - 50Hz 6500K 120° 5000 < 33 240x172x27
