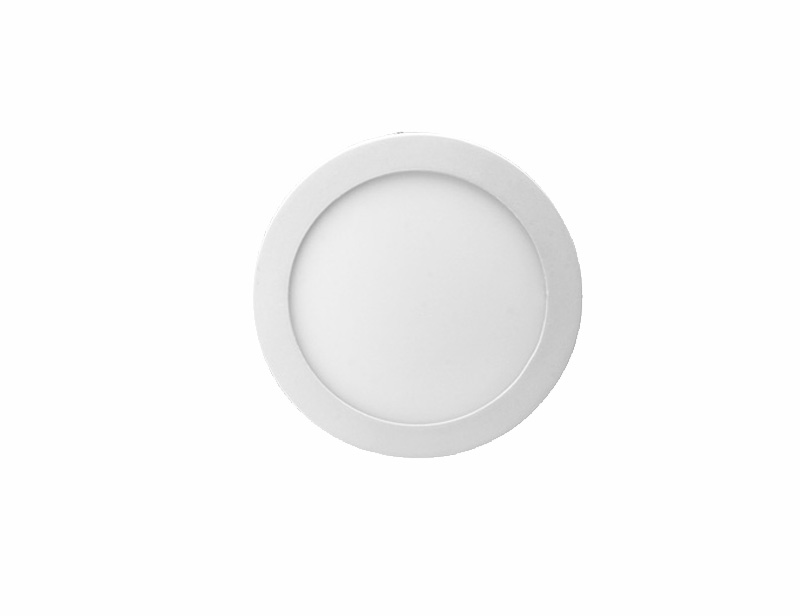

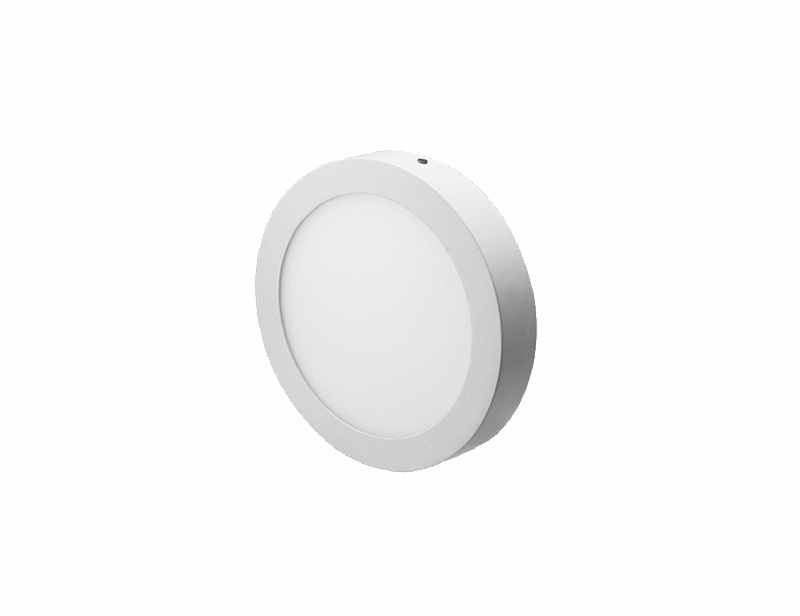

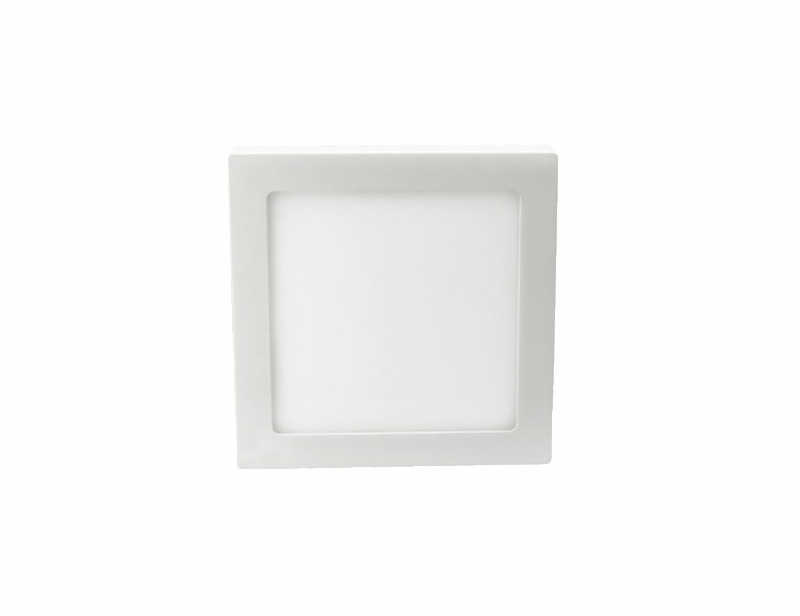

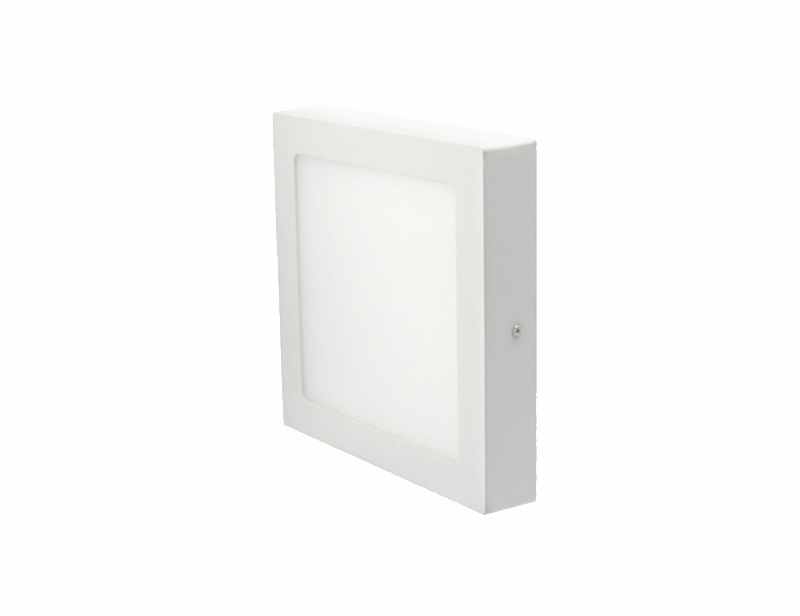

Aluminum Surface Panel
Slim type LED Panel with die-cast aluminum housing and smooth powder coated finish with anti-glare UV stabilized diffuser and separate energy efficient electronic driver & inbuilt driver.
- Input Voltage : AC 140-270V, 50Hz
- LED Life : 30,000 hours
- Optics : Polycarbonate diffuser
- Idriver Type : Constant Current. Non-Integral
- P.F : ≥ 0.9
- Surge : 2.5 KV
- CRI : Ra>80
| Input Power (W) | Input Voltage | Colour Temp(CRI) | Beam Angle | Lumen (lm) | THD | Cut-out Dimension (mm) |
|---|
| 3W | 140- 270V, AC - 50Hz | 4000K/5700K/6500K | 120° | 255 | < 10 | 80 |
| 6W | 140- 270V, AC - 50Hz | 4000K/5700K/6500K | 120° | 510 | < 10 | 105 |
| 12W | 140- 270V, AC - 50Hz | 4000K/5700K/6500K | 120° | 1020 | < 10 | 155 |
| 15W | 140- 270V, AC - 50Hz | 4000K/5700K/6500K | 120° | 1275 | < 10 | 190 |
| 18W | 140- 270V, AC - 50Hz | 4000K/5700K/6500K | 120° | 1700 | < 10 | 205 |
