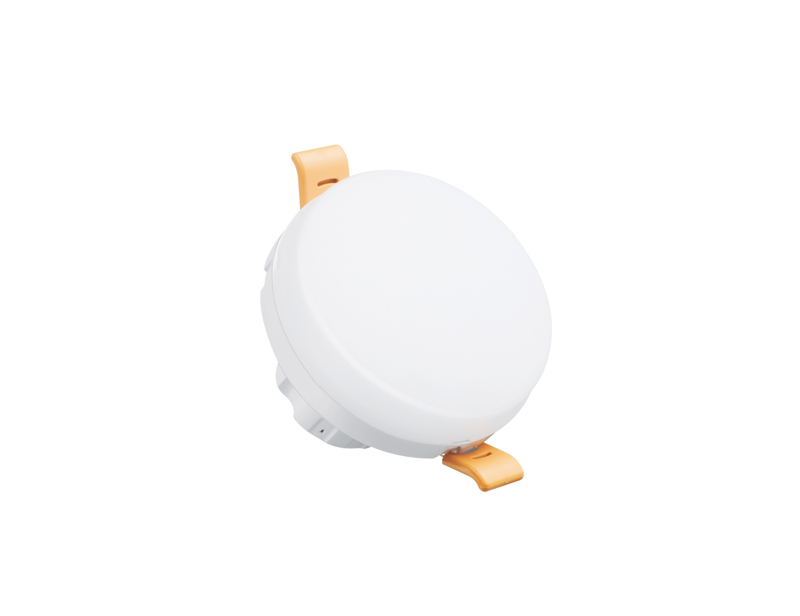

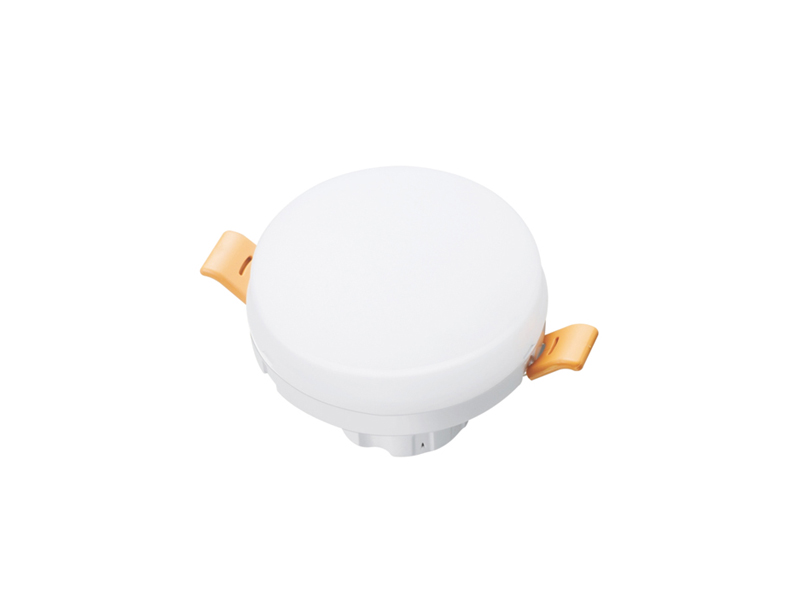

Junction Box 02
Junction Box aesthetically designed for ceiling.
- Input Voltage : AC 140-270V, 50Hz
- LED Life : 50,000 hours
- Optics : Polycarbonate diffuser
- Idriver Type : Constant Current. Non-Integral
- P.F : ≥ 0.9
- Surge : 1.5 KV
- CRI : Ra>80
| Input Power (W) | Input Voltage | Colour Temp(CRI) | Beam Angle | Lumen (lm) | THD | Cut-out Dimension (mm) |
|---|
| 3W | 220- 240V, AC - 50Hz | CDL/NW/WW/Blue/Red/Green | 120° | 250 | < 33 | 84x64 |
| 6W | 220- 240V, AC - 50Hz | CDL/NW/WW/Blue/Red/Green | 120° | 480 | < 33 | 115x66 |
