Quartz Downlight




Quartz Downlight

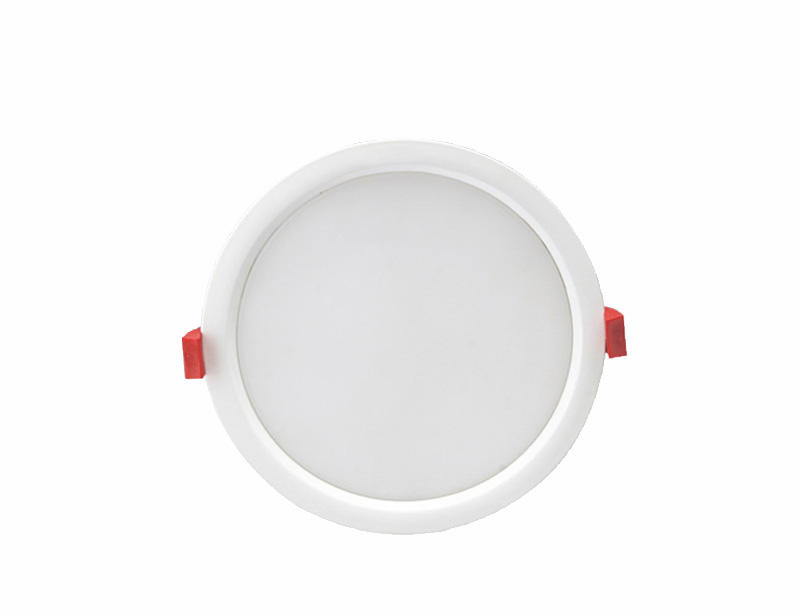

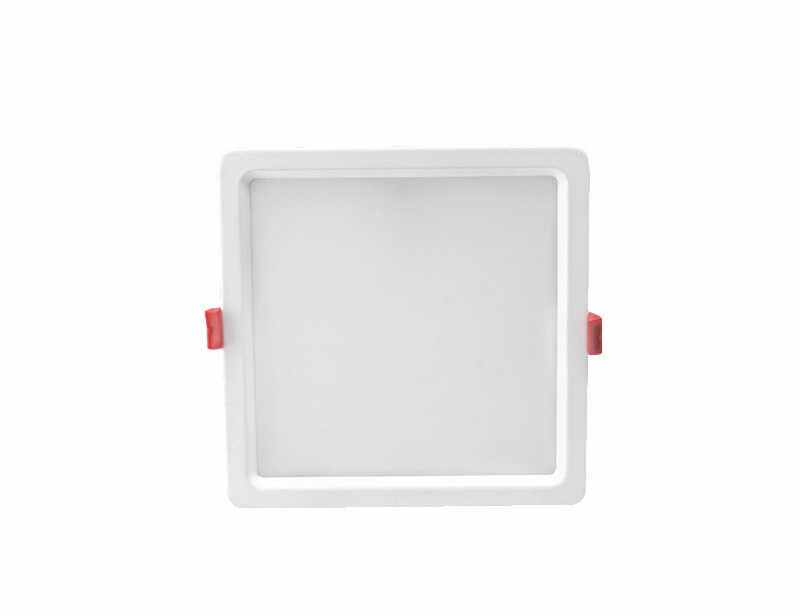

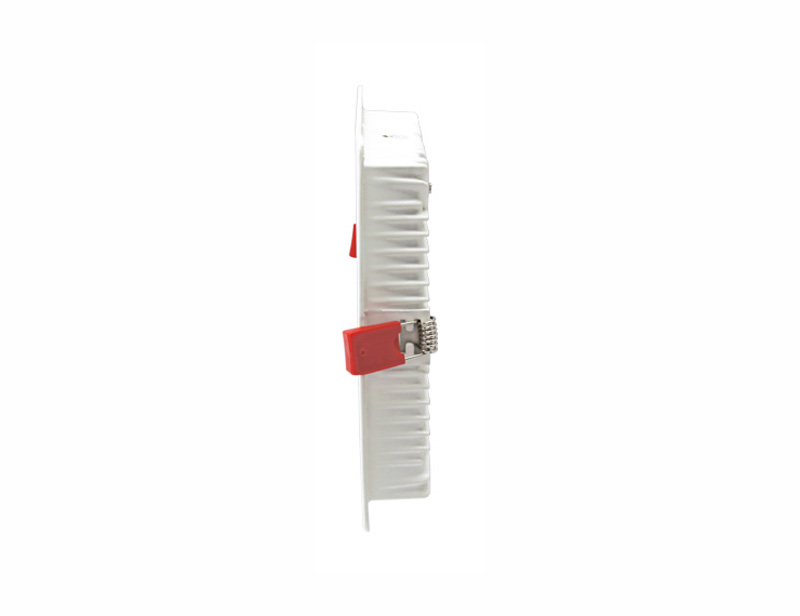

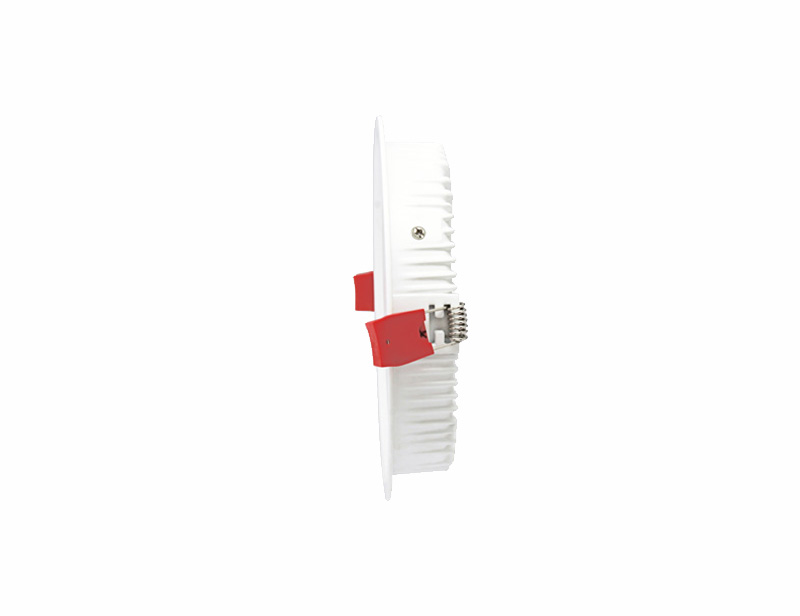

Quartz Downlighter in white finish with energy efficient electronic driver aesthetically designed for ceiling.


  • Input Voltage : AC 140-270V, 50Hz
  • Idriver Type : Constant Current. Non-Integral
  • P.F : ≥ 0.9
  • Surge : 2.5 KV
  • CRI : Ra>80
  • LED Life : 30,000 hours
  • Optics : Polycarbonate diffuser


Input Power (W) Input Voltage Colour Temp(CRI) Beam Angle Lumen (lm) THD Cut-out Dimension (mm)
6W/9W 140- 270V, AC - 50Hz 4000K/5700K/6500K 120° 540/810 < 15 275x37x28
12W/15W 140- 270V, AC - 50Hz 4000K/5700K/6500K 120° 1200/1500 < 15 536x37x28
18W/22W 140- 270V, AC - 50Hz 4000K/5700K/6500K 120° 1800/2200 < 15 1136x37x28
