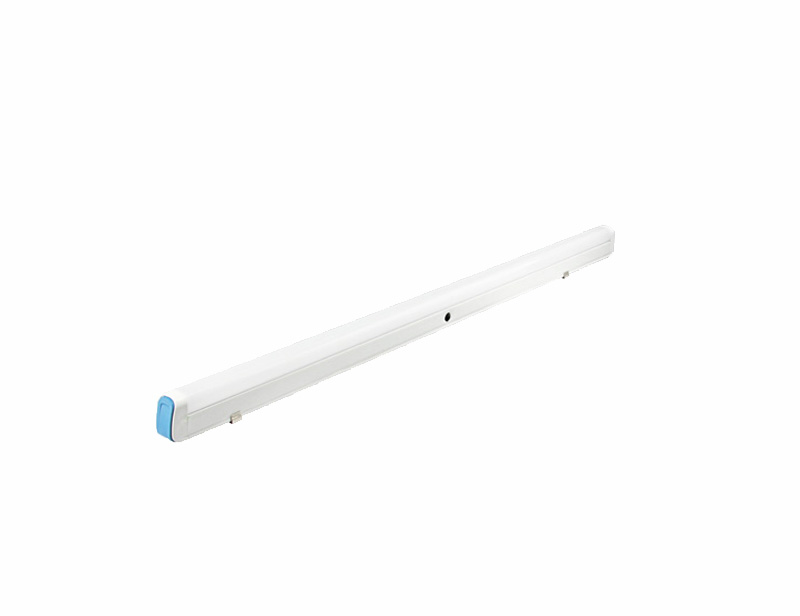

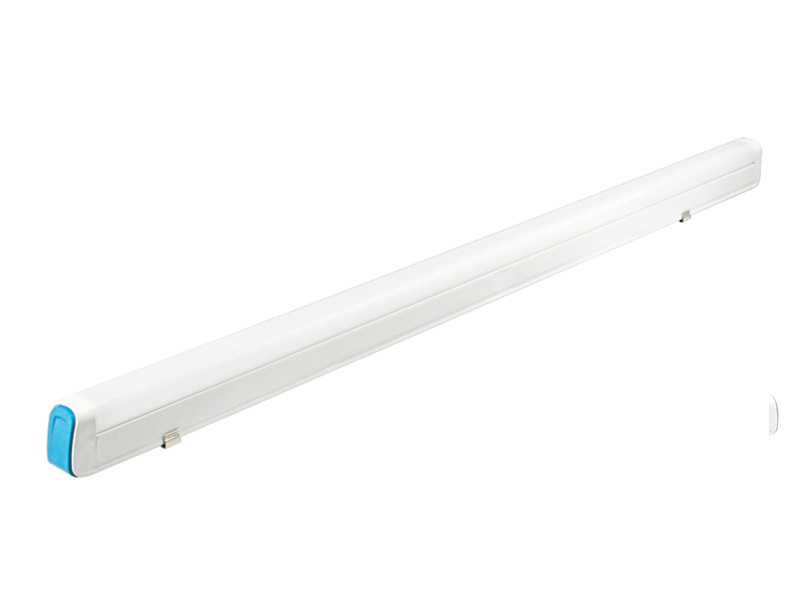

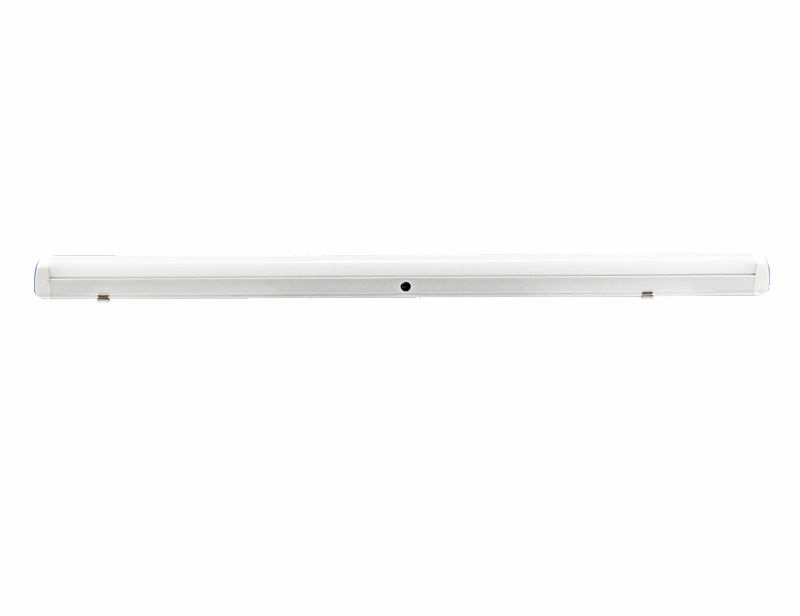

T5 Aluminium
T5 Aluminium with inbuilt heat sink, anti-glare polycarbonate diffuser and energy efficient electronic driver.
- Input Voltage : AC 140-270V, 50Hz
- LED Life : 20,000 hours
- Optics : Polycarbonate diffuser for better distribution
- Idriver Type : Constant Current. Non-Integral
- P.F : ≥ 0.9
- Surge : 2.5 KV
- CRI : Ra>80
| Input Power (W) | Input Voltage | Colour Temp(CRI) | Beam Angle | Lumen (lm) | THD | Cut-out Dimension (mm) |
|---|
| 4W | 140- 240V, AC - 50Hz | 4000K/5700K/6500K | 120° | 500 | < 15 | 275x37x28 |
| 9W | 140- 240V, AC - 50Hz | 3000K/5700K/6500K | 120° | 900 | < 15 | 536x37x28 |
| 18W | 140- 240V, AC - 50Hz | 3000K/5700K/6500K | 120° | 1800 | < 15 | 1136x37x28 |
| 22W | 140- 240V, AC - 50Hz | 3000K/5700K/6500K | 120° | 2200 | < 15 | 1136x37x28 |
